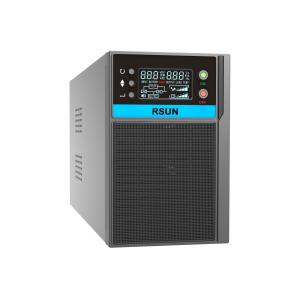

650VA 1KVA 2KVA 3KVA 5KVA Pure Sine Wave Line Interactive UPS LCD for PC mini ups with battery backup
Description:
The RSUN BE Series UPS adopts advanced CPU-integrated control technology and delivers a pure sine wave output. It features a wide input voltage range and rapid transfer time, ensuring reliable performance during power fluctuations. With built-in automatic voltage regulation (AVR) and selectable charging current options, it meets various user requirements. Long backup models are available and can be connected to external batteries, offering virtually unlimited backup time based on user needs.
FEATURES:
SPECIFICATIONS:
| Model NO. | BE650 | BE1000 | BE1500 | BE2000 | BE3000 | BE1000L | BE1500L | BE2000L | BE3000L | ||
| Capacity | 650VA/390W | 1000VA/800W | 1500VA/1200W | 2000VA/1600W | 3000VA/2400W | 1000VA/800W | 1500VA/1200W | 2000VA/1600W | 3000VA/2400W | ||
| Display | LCD | ||||||||||
| AC Mode | |||||||||||
| Input voltage range | 220V/230V/240V: 145~275Vac | ||||||||||
| Input frequency | 50Hz / 60Hz (Auto sensing) | ||||||||||
| Output voltage range | 220V/230V/240V: 200~240Vac | ||||||||||
| Efficiency | ≥ 96% (AC mode) | ||||||||||
| Inverter Mode | |||||||||||
| Output voltage range | 220Vac±5% | ||||||||||
| Output frequency | 50±0.5Hz / 60±0.5Hz | ||||||||||
| Output wave form | Pure sine wave | ||||||||||
| Transfer time | Typical 2~6ms, Max.10ms. | ||||||||||
| Overload capability | Automally shut down in 60sec while with 110% load, and shut down in 5sec while with 120% load | ||||||||||
| BATTERY | |||||||||||
| QTY & capacity of battery | 1pc*12V7Ah | 2 pc*12V7Ah | 2 pc*12V9Ah | 2/4pcs*12V7Ah | 4pcs*12V9Ah | External batteries(24V), capacity depends on user's choice. | External batteries(48V), capacity depends on user's choice. | ||||
| Charging period | 6~8 hours recover to 90% capacity | ||||||||||
| Charging current | 1.3A | 5A/10A (Optional) | |||||||||
| MANAGEMENT | |||||||||||
| USB | Optional (Refer to customers' requires) | ||||||||||
| PROTECTION | |||||||||||
| PROTECTIONS | 1. Auto re-starts when AC recovers 2. Automatic charging (offline charging) 3. Battery low voltage protection 4. Overload & Short circuit protection 4.Over current protection (Breaker for AC mode; System automaticlly shut down wihin 20ms in Inverter mode). | ||||||||||
| PHYSICAL | |||||||||||
| Unit dimension (mm) | 305*85*141 | 384*122*192 | 455*195*330 | 345*122*192 | 455*195*330 | ||||||
| Net weight (1pc, kg) | 4.8 | 11 | 13 | 22.0 | 24.5 | 9.2 | 11.8 | 18.0 | 21.4 | ||
Support all kinds of output sockets:
Compatible with a broad array of international socket standards, including but not limited to Schuko (Type F), Universal, IEC C13 / C14, Italian (Type L), NEMA (Type A / B), Brazilian (Type N), British (Type G), French (Type E), South African (Type M), Australian (Type I), Swiss (Type J), and Indian (Type D) outlets - ensuring seamless adaptability across diverse regional power requirements.
APPLICATIONS:
Our Service:
1. Samples
Samples are Available for Testing and Market Test.
2. Warranty of RSUN Products
RSUN provides warranty against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter 12v 24v 48V, Solar charge controllers (“Product”).
3. OEM Service
OEM service of RSUN is strictly based on the ISO9001 ISO14001 quality assurance system. The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, purchasing, production & QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 23 years.
