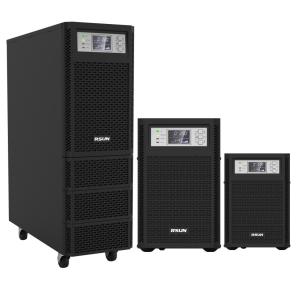

10KVA Online UPS 10KW Online High Frequency UPS 1A-12A Charger Current Double Conversion UPS, Internal Battery type can connect with multiple battery pack in parallel, Standard type LCD
Features:
1. Microprocessor control optimized reliability
2. True double-conversion
3. Input power factor correction
4. Wide input voltage(110V~300VAC)
5. Output power factor 1.0: 1KVA / 1KW, 2KVA / 2KW, 3KVA / 3KW, 6KVA / 6KW, 10KVA / 10KW
6. Converter mode available
7. Generator compatible
8. Adjustable charger current 1~12A (settable)
Description:
The RSUN CK Series single-phase online UPS (1 - 10kVA) is engineered for mission-critical applications in server rooms, data centers, SOHO environments, and edge networks. It combines three-level topology with digital control and APFC for a high-efficiency, space-saving power solution. Generator compatibility and comprehensive power quality protection, including against transient voltage dips, high-voltage impulses, surges, noise, and frequency drift make it a reliable UPS system for both enterprise and residential environments.
Specifications:
| Model | C1K | C2K | C3K | C6K | C10K | ||
| Rated Power | 1000W | 2000W | 3000W | 6KW | 10KW | ||
| Display | LCD | ||||||
| INPUT | |||||||
| Input Formats | L+N+PE | ||||||
| Rated Input Voltage | 208/220/230/240VAC | ||||||
| Voltage Range | 110~300VAC ( 110~176VAC,280~300VAC power limited ) | ||||||
| Frequency Range | 50/60Hz±6Hz,± 10Hz (setable) | ||||||
| Input Power Factor | ≥0.99 | ||||||
| OUTPUT | |||||||
| Output Formats | L+N+PE | ||||||
| Output voltage | 208/220/230/240VAC | ||||||
| Output Accuracy | ±1% | ||||||
| Frequency | AC mode: same as AC ,Battery mode:50/60Hz±1% | ||||||
| Harmonic Distortion | ≦1% THD(linear load), ≦3% THD(non-linear load) | ≦2% THD(linear load), ≦5% THD(non-linear load) | |||||
| Wave form | Sine Wave | ||||||
| Output Power Factor | 1.0 | ||||||
| Transform Time | AC mode to Batt. Mode:0ms,Inverter mode to Bypass mode:4ms | ||||||
| Load Capacity | AC Mode: 30min@102%~110% Load 10min@110%~130% Load 30s@130%~150% Load 200ms@>150% Load | Battery Mode: 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load | AC Mode: 30min@102%~110% Load 10min@110%~130% Load 30s@130%~150% Load 500ms@>150% Load | Battery Mode: 10min@102%~110% Load 1min@110%~130% Load 10s@130%~150% Load 500ms@>150% Load | |||
| EFFICIENCY | |||||||
| AC Mode | Peak efficiency 94.5% | Peak efficiency 94.5% | Peak efficiency 94% | Peak efficiency 95.5% | |||
| Full load efficiency 90% | Full load efficiency 91% | Full load efficiency 91% | Full load efficiency 95% | ||||
| BATTERY | |||||||
| QTY & capacity of battery | Built-in: 2pcs*12V7Ah | Built-in: 6/4pcs*12V7Ah | Built-in: 6pcs*12V7Ah | Built-in: 16/20pcs*12V7Ah | Built-in: 16/20pcs*12V7Ah | ||
| External battery norminal DC voltage | ------- | ------- | ------- | ------- | ------- | ||
| Charging Current | Standard type: 1A, Long backup type KS: 1A~12A(adjustable by user) | ||||||
| WORKING ENVIRONMENT | |||||||
| Ambient Temperature | 0~40℃ | ||||||
| Ambient Humidity | 20%~95%(No Condensation) | ||||||
| Storage Temperature | -15~60℃(Battery:0~40℃) | ||||||
| Altitude | <1000m,Derating at above 1000m,maximum 4000m,Refer to IEC62040 | ||||||
| COMUNICATION INTERFACE | |||||||
| Interface | RS232, USB, EPO, Manual Maintenance bypass, SNMP slot selectable (Optional, refer to customers' requires) | ||||||
| PHYSICAL | |||||||
| Unit dimension (mm) | 347*145*225 | 395*190*325 | 395*190*325 | 460*200*720 | 460*200*720 | ||
| Net weight | 17.5 (2PCS) | 24 | 24.2 | 61 | 61.5 | ||
1KVA - 3KVA Rear Panel:
Support Schuko (European), American, Universal, IEC, Nema, British, Brazilian socket,etc.
Parallel connection with multiple battery packs:
This long-backup UPS solution offers flexible battery configuration, allowing users to expand the number of battery packs as needed to achieve extended backup time. This design not only optimizes space utilization but also provides scalability to meet varying power autonomy requirements.
Applications:
Extensively deployed in data centers, network operation centers, enterprise server rooms, and sectors such as telecommunications, finance, transportation, government, manufacturing, and energy.
FAQ:
Q1. Can I have a sample order for UPS?
A: Of course! We encourage sample purchases to check quality. You can mix different models.
Q2. What about the lead time?
A: We usually deliver samples in under a week; bulk orders take 3 - 4 weeks.
Q3. Do you have any MOQ limit for UPS order?
A: Our MOQ is very flexible, 1 piece for evaluation is perfectly fine.
Q4. How do you ship the goods and how long does it take to arrive?
A: We use standard carriers like DHL, FedEx, and sea freight for delivery.
Q5. How to proceed an order for UPS?
A: The process starts with your inquiry, followed by quotation, sample confirmation, and order production.
Q6. Is it OK to print my logo on UPS product?
A: Yes, branding is supported. Kindly confirm your logo details with us beforehand.
Q7: Do you offer guarantee for the products?
A: Yes, we provide a quality guarantee, 1 to 3 years depending on the model.
