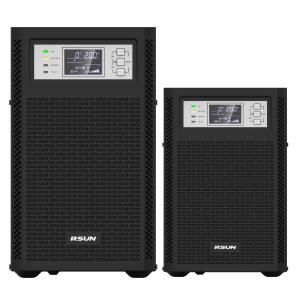

10KVA Online UPS External Battery Long Backup Type Single Phase Online UPS System, Long backup type external battery UPS, LCD, RS232, USB, EPO, SNMP Card, Dry Contact
Features:
1. True double-conversion
2. Output power factor 1.0: 1KVA / 1KW, 2KVA / 2KW, 3KVA / 3KW, 6KVA / 6KW, 10KVA / 10KW
3. Corrected input power factor for improved efficiency
4. Microprocessor-controlled design for enhanced system reliability
5. Range of wide input voltage 110V~300VAC
6. Supports converter mode operation
7. Compatible with generator
8. Adjustable charging current from 1A to 12A
9. Compatible with Megatec SNMP Card
Description:
From 1 to 10kVA, the RSUN CK Series UPS delivers true online double-conversion backup with best-in-class digital control. Featuring advanced three-level topology, soft-switching design, and APFC (0.99 input PFC), it ensures efficient and stable power. The high energy density structure reduces cabinet volume, saving space in server rooms. With wide-ranging power protection, including harmonic suppression, surge immunity, and generator support, the CK UPS is ideal for critical IT and industrial environments.
Specifications:
| Model | C1KS | C2KS | C3KS | C6KS | C10KS | ||
| Rated Power | 1000W | 2000W | 3000W | 6KW | 10KW | ||
| Display | LCD | ||||||
| INPUT | |||||||
| Input Formats | L+N+PE | ||||||
| Rated Input Voltage | 208/220/230/240VAC | ||||||
| Voltage Range | 110~300VAC ( 110~176VAC,280~300VAC power limited ) | ||||||
| Frequency Range | 50/60Hz±6Hz,± 10Hz (setable) | ||||||
| Input Power Factor | ≥0.99 | ||||||
| OUTPUT | |||||||
| Output Formats | L+N+PE | ||||||
| Output voltage | 208/220/230/240VAC | ||||||
| Output Accuracy | ±1% | ||||||
| Frequency | AC mode: same as AC ,Battery mode:50/60Hz±1% | ||||||
| Harmonic Distortion | ≦1% THD(linear load), ≦3% THD(non-linear load) | ≦2% THD(linear load), ≦5% THD(non-linear load) | |||||
| Wave form | Sine Wave | ||||||
| Output Power Factor | 1.0 | ||||||
| Transform Time | AC mode to Batt. Mode:0ms,Inverter mode to Bypass mode:4ms | ||||||
| Load Capacity | AC Mode: 30min@102%~110% Load 10min@110%~130% Load 30s@130%~150% Load 200ms@>150% Load | Battery Mode: 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load | AC Mode: 30min@102%~110% Load 10min@110%~130% Load 30s@130%~150% Load 500ms@>150% Load | Battery Mode: 10min@102%~110% Load 1min@110%~130% Load 10s@130%~150% Load 500ms@>150% Load | |||
| EFFICIENCY | |||||||
| AC Mode | Peak efficiency 94.5% | Peak efficiency 94.5% | Peak efficiency 94% | Peak efficiency 95.5% | |||
| Full load efficiency 90% | Full load efficiency 91% | Full load efficiency 91% | Full load efficiency 95% | ||||
| BATTERY | |||||||
| External battery norminal DC voltage | 36VDC | 72VDC | 96VDC | 192-240VDC | 192-240VDC | ||
| Charging Current | Standard type: 1A, Long backup type KS: 1A~12A(adjustable by user) | ||||||
| WORKING ENVIRONMENT | |||||||
| Ambient Temperature | 0~40℃ | ||||||
| Ambient Humidity | 20%~95%(No Condensation) | ||||||
| Storage Temperature | -15~60℃(Battery:0~40℃) | ||||||
| Altitude | <1000m,Derating at above 1000m,maximum 4000m,Refer to IEC62040 | ||||||
| COMUNICATION INTERFACE | |||||||
| Interface | RS232, USB, EPO, Manual Maintenance bypass, SNMP slot selectable (Optional, refer to customers' requires) | ||||||
| PHYSICAL | |||||||
| Unit dimension (mm) | 347*145*225 | 395*190*325 | 395*190*325 | 460*200*720 | 460*200*720 | ||
| Net weight | 17.5 (2PCS) | 24 | 24.2 | 61 | 61.5 | ||
Parallel connection with multiple battery packs:
The CK series supports connection with multiple battery packs in parallel. This long-backup UPS allows flexible battery configuration, enabling users to expand battery capacity as needed for extended backup time. This not only optimizes space usage but also provides scalable autonomy to meet various power demands.
Applications:
Applicable to a wide array of industries including IT infrastructure (data centers, server rooms), telecommunications, finance, transportation, government services, manufacturing, and energy.
FAQ:
Q1. Can I have a sample order for UPS?
RSUN: Sure. We offer sample UPS units to help you evaluate our products before bulk purchase.
Q2. What about the lead time?
RSUN: Production time: 5–7 days for samples, up to 25 working days for large orders.
Q3. Do you have any MOQ limit for UPS order?
RSUN: There’s no high MOQ, please feel free to order a single sample first.
Q4. How do you ship the goods and how long does it take to arrive?
RSUN: Delivery options include air, sea, and express. Shipping duration depends on your location.
Q5. How to proceed an order for UPS?
RSUN: Just let us know what you need. We’ll walk you through pricing, sampling, and final order steps.
Q6. Is it OK to print my logo on UPS product?
RSUN: We welcome OEM. Just provide logo specs prior to manufacturing.
Q7: Do you offer guarantee for the products?
RSUN: All units are covered by a limited warranty lasting between one and three years.
